Noninverting_amplifier_for_gains_less_than_10

Published:2009/7/23 21:07:00 Author:Jessie | From:SeekIC

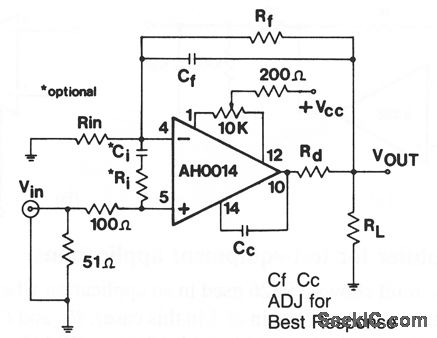

This circuit shows an AH0014 connected as a noninverting wideband amplifier, where gains must be less than 10, but more than 1. The characteristics are the same as for the circuits of Figs. 3-49 and 3-51. Figure 3-48B shows external connections for the AH0014.
