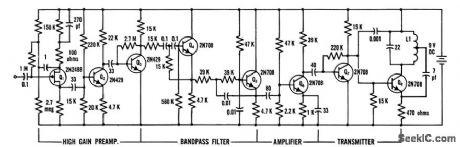

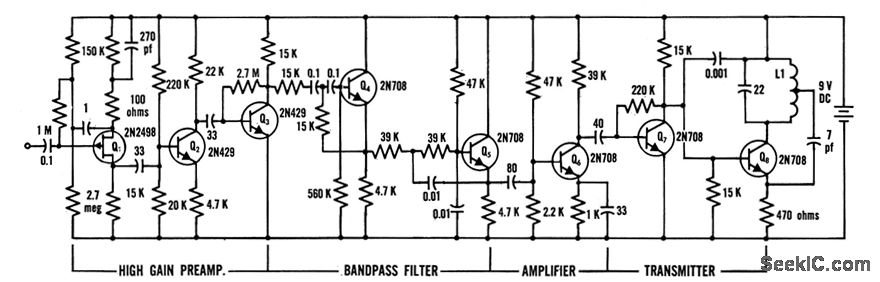

Used in telemetering bioelectric potentials from baroreceptors of blood pressure control system in active awake animals for several days after surgical implantation of electrodes in aorta and carotid arteries. System provides lat frequency response from 1 to 1,200 cps with input impedance of 2.5 meg and input sensitivity of 5 to 500 my. Trans-mining range is 25 feet.-P. Kezdi and W. S.Naylor, Telemetry System to Transmit Baroreceptor Nerve Action Potentials, The American Journal of Medical Electron; 4:4,p 153-155.
