Multiplier_circuit_using_an_MC1595

Published:2009/7/21 1:47:00 Author:Jessie | From:SeekIC

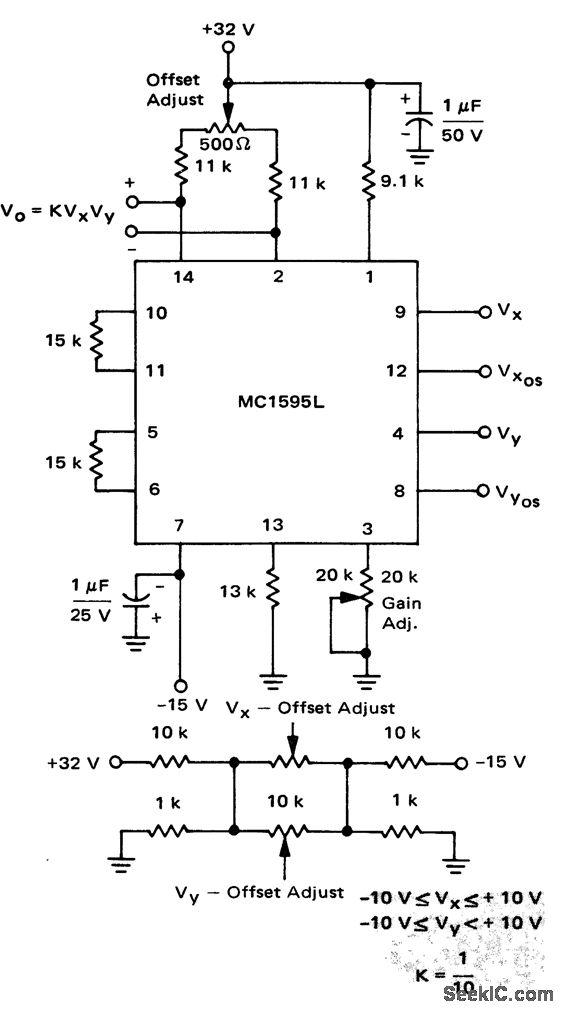

Multiplier circuit using an MC1595 (courtesy Motorola Semiconductor Products Inc.).
