Multiplexed_cable_driver_2_channel

Published:2009/7/24 21:34:00 Author:Jessie | From:SeekIC

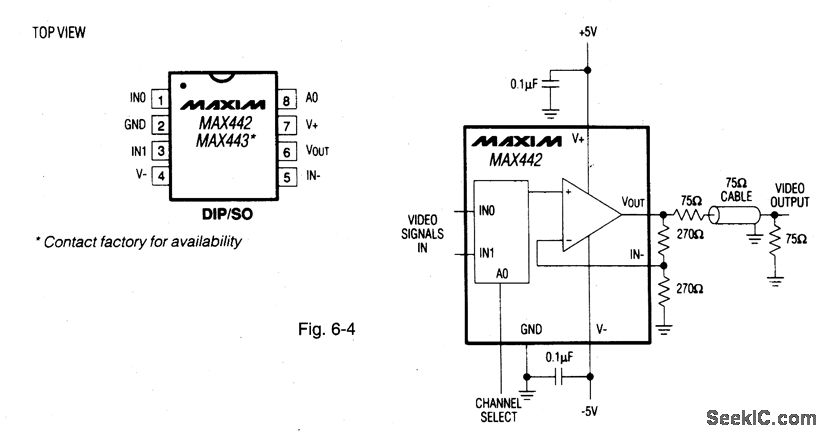

Figure 6-4 shows a multiplexer/amplifier MAX442 connected to provide 2 channels of video signal to a single cable. Unity-gain bandwidth is 140 MHz, channel-switch time is 36 ns, and slew rate is 250 V/μs. MAXIM NEW RELEASES DATA Book, 1993, P. 3-17.
