Loopback_tests

Published:2009/7/23 23:57:00 Author:Jessie | From:SeekIC

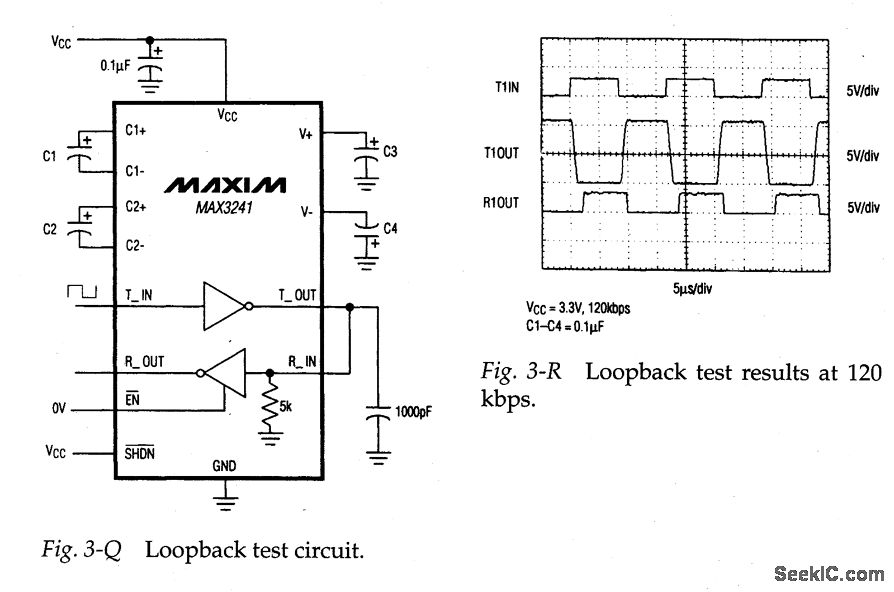

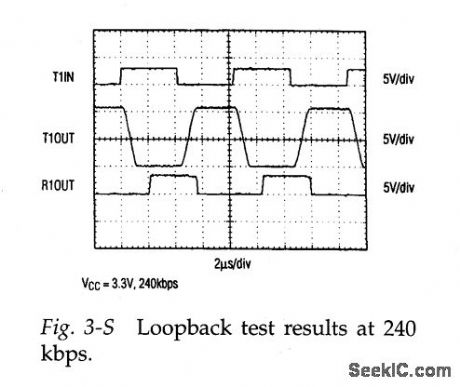

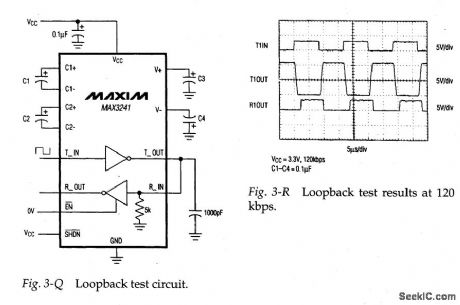

Figure 3-Q shows a loopback test circuit for the MAX3241. Figures 3-R and 3-S show the loopback test results at 120 kbps and 240 kbps, respectively. Notice that the input is applied at the transmitter input, and that both the transmitter output (connected to receiver input) and the receiver output waveforms are monitored.
