Linear_TV_IF_amplifier_using_an_ECG_1080_chip

Published:2009/7/21 5:08:00 Author:Jessie | From:SeekIC

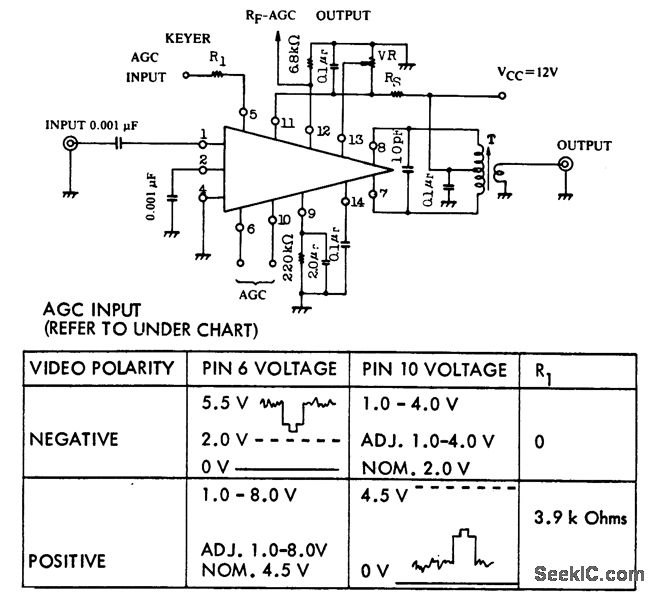

Linear TV IF amplifier using an ECG 1080 chip, which provides 46 dB powergain. Transformer T is 0.32 mm enamel wire with a center-tapped primary of eight tums close wound. The secondary is one tum of the same wire. The coil form diameter is 5.5 mm (courtesy GTE Sylvania Incorporated).
