Line_operated_one_shot_timer

Published:2009/7/21 23:21:00 Author:Jessie | From:SeekIC

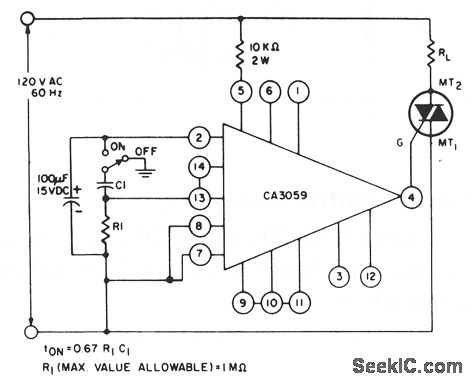

This circuit uses a CA3059 zero-voltage switch to control triac operation. The turn-on time of the triac (and thus the current through load RL) is set by the values ofR and C, as shown by the equations.
