Line_operated_IC_timer_for_Long_time_periods

Published:2009/7/21 23:33:00 Author:Jessie | From:SeekIC

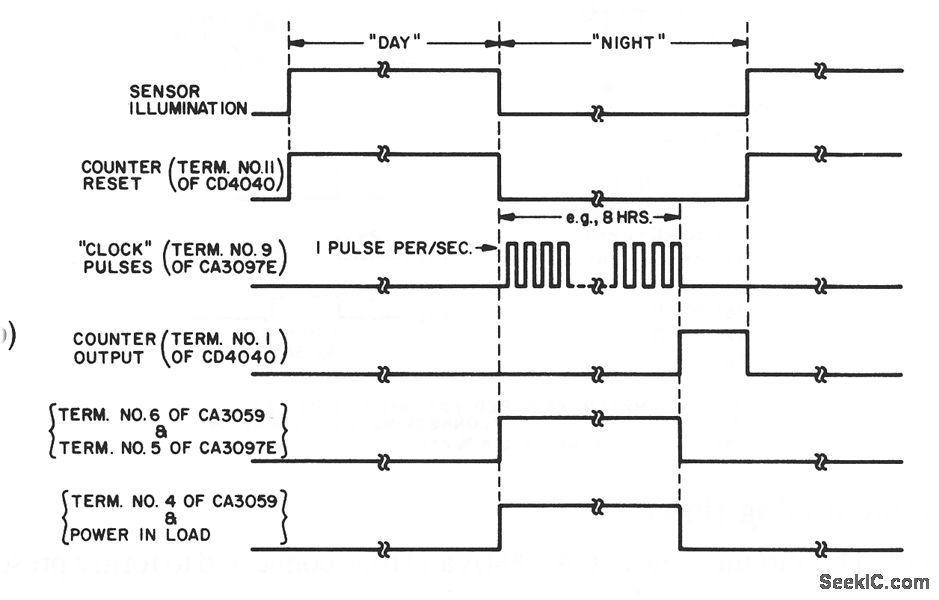

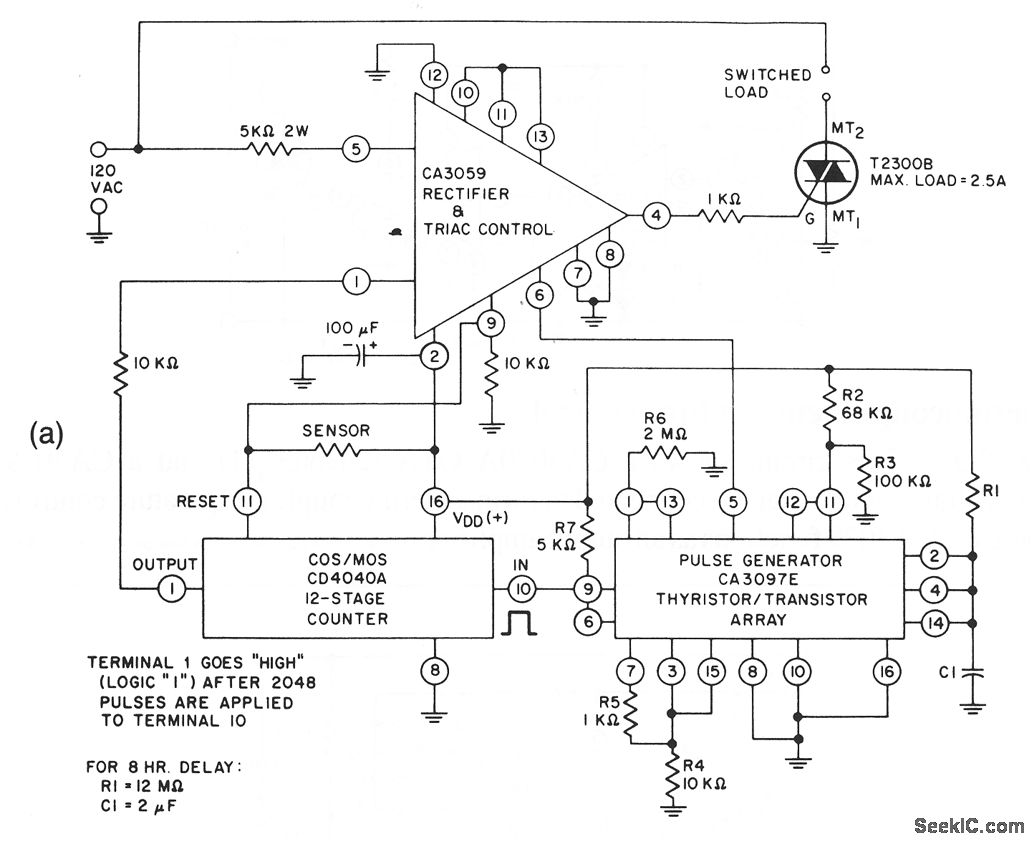

This circuit provides tum-on to a 2.5-A load after a long time period. The delay is set by the values of R1 and C1, as shown by the equations. The timing diagram is shown in Fig. 8-32B.
