LOW_POWER_PARALLEL_TRANSISTOR_OUTPUT

Published:2009/7/21 7:41:00 Author:Jessie | From:SeekIC

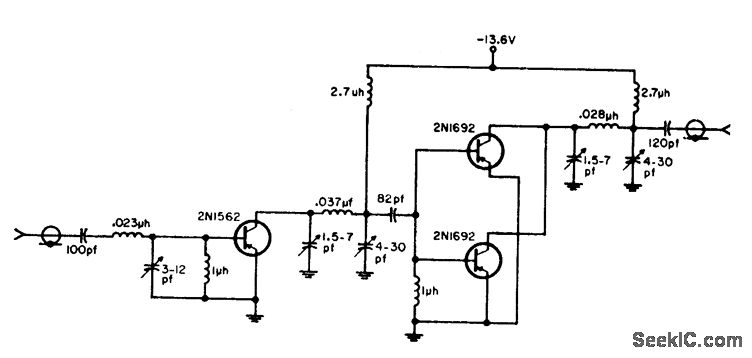

Conventional transistor arrangement provides up to 2 w output with power gain of 10 db. Chief advantage is simplicity.-W.A. Rheinfelder, Choosing the Best Transmitter Output Stage, EEE, 11:10, p 48-53.
