LOW_POWER_DRIVER

Published:2009/7/23 23:34:00 Author:Jessie | From:SeekIC

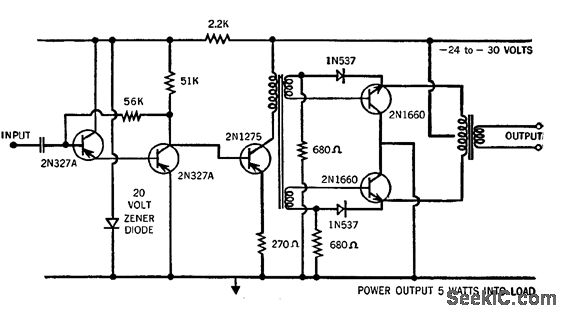

Pair of high-voltage, high-gain silicon power transistors gives 5W output from -55 to +125℃ when driven by 250-mw 2N1275 transistor.-New High Volt-age, High Gain Transistors (Raytheon Ad), Electronics, 33:35, p 42.
