Published:2009/7/24 3:34:00 Author:Jessie | From:SeekIC

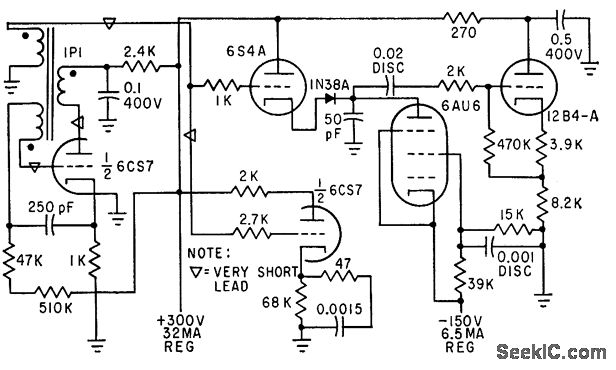

Provides sweep voltage for klystron in microwave interferometer system, plus vertical sweep end trigger for oscilloscope.-H. L. Bunn, Determining Electron Density und Distribution in Plasmas, Electronics, 34:14, p 71-75.
