KERR_CELL_SHUTTER

Published:2009/7/21 4:04:00 Author:Jessie | From:SeekIC

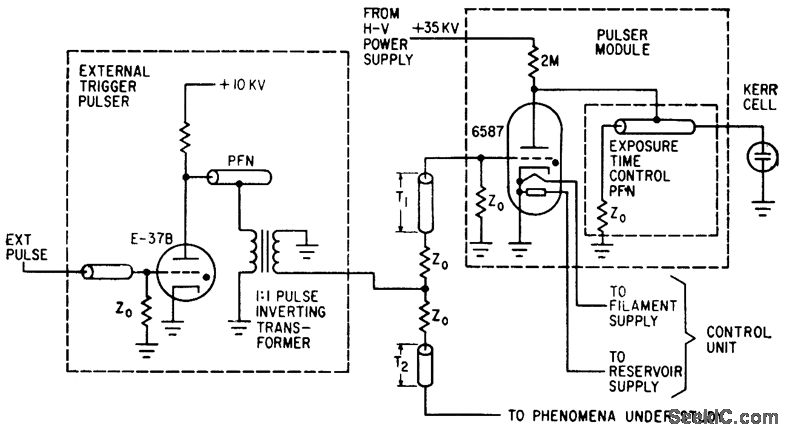

High-voltage Kerr-cell pulser and parallel triggering synchronization give 5-nsec exposure, with triggering time jitter less than 1 nsec. Power supply must deliver 350-amp pulse as 35 kv.-S. M. Hauser and H. Quan, Applying the Kerr Cell to Nanosecond Photography, Electronics, 34:33, p 56-59.
