INTERVALOMETER

Published:2009/7/23 22:43:00 Author:Jessie | From:SeekIC

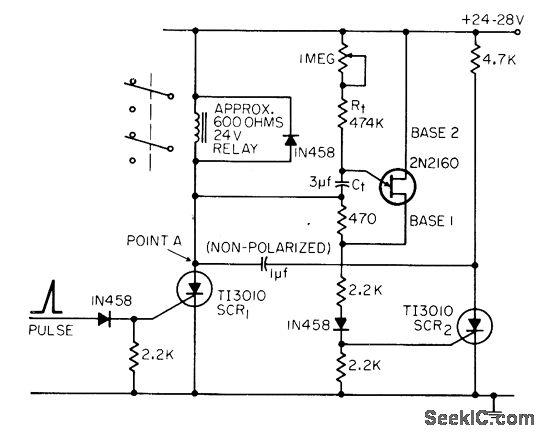

Operates at end of pre determined period to produce second pre determined time period in range of 5 to 10 sec. Developed for medical electronic re search. Standby current is only 5 mc.-E. L. Dewig, Inexpensive UJT-SCR Intervalometer, EEE, 14:7, p 104.
