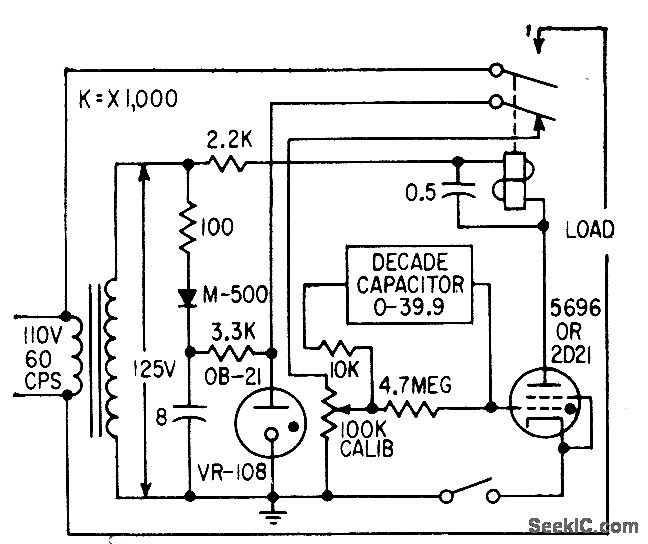

IMPROVED_THYPATRON_TIMER

Published:2009/7/23 22:19:00 Author:Jessie | From:SeekIC

Linearity is improved by varying capacitance rather than resistance in grid circuits. riming error is less than 1% for 1 to 400 sec.-R. L. Ives, Timer Made More Linear, Electronics, 32:5, p 66-69.
