IC_precision_waveform_generator

Published:2009/7/25 4:19:00 Author:Jessie | From:SeekIC

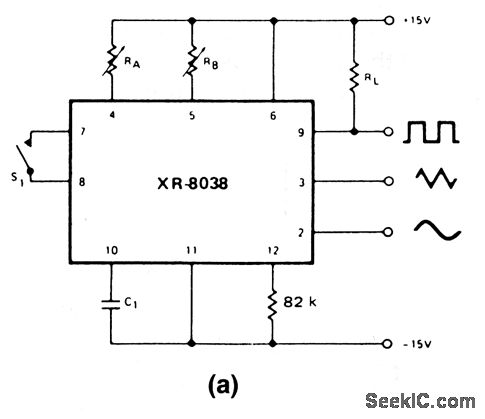

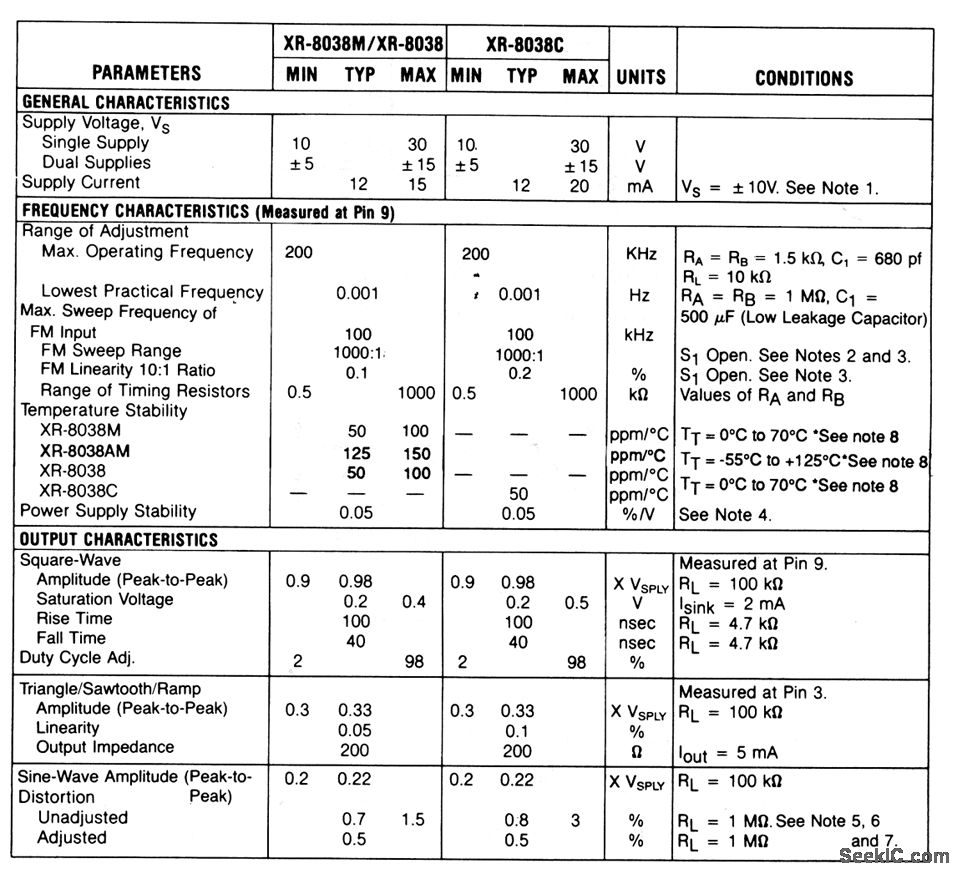

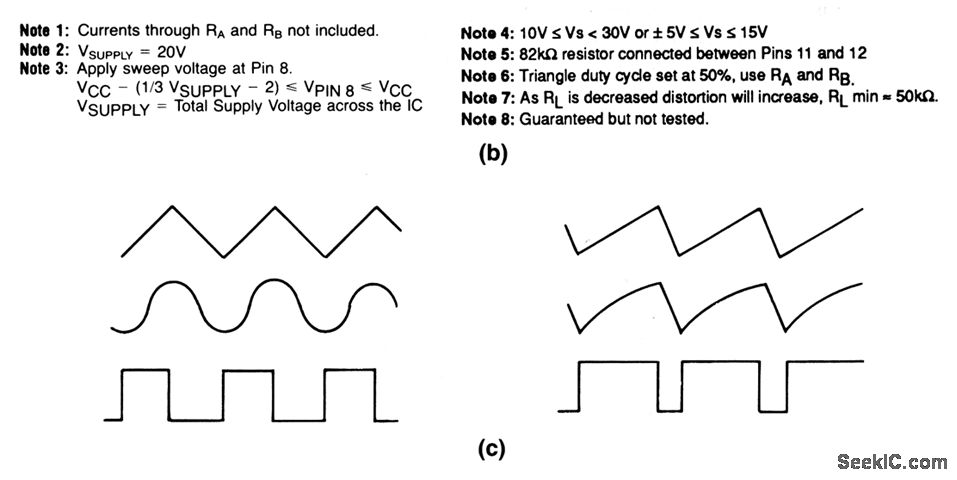

This circuit uses an XR-8038 to provide simultaneous sine, square, and triangle outputs, which can be sweep and frequency odulated,The frequency range is from 0.001 Hz to 200 kHz、with a variable duty cycle from 2％to 98％ Electrical characteristics、and phase relationships of the outputs, are shown in Figs.5-47B and 5-47C,respectively．The operating frequency is set by capacitor C at pin 10,and the timing resistors at pins 4 and 5 See Conditions in Fig.5-47B．
