IC_VCO_with_single_supply_and_fixed_frequency

Published:2009/7/25 4:07:00 Author:Jessie | From:SeekIC

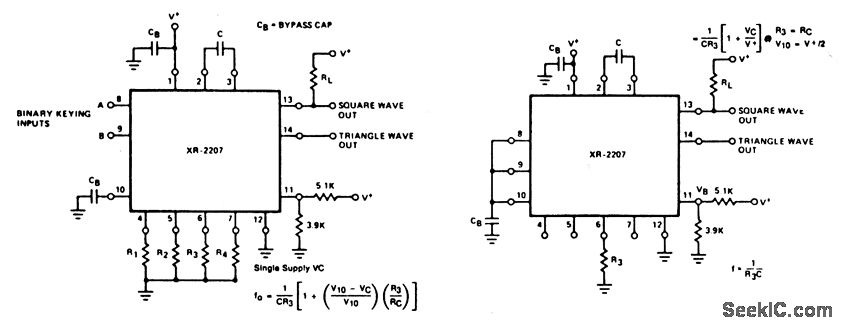

This circuit is similar to that of Fig. 5-36, except that a single supply is used, and the output is at a fixed frequency, determined by R3 and C, as shown by the equations.
