IC_VCO_with_frequency_sweep_operation

Published:2009/7/25 4:09:00 Author:Jessie | From:SeekIC

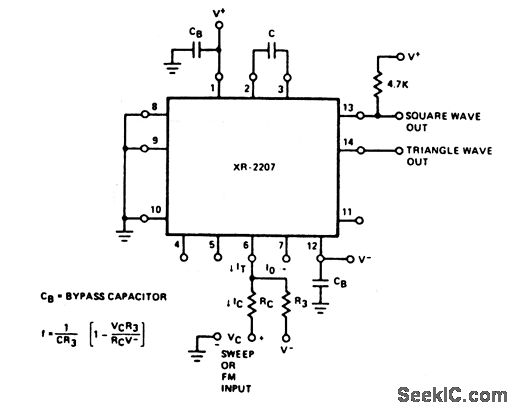

This circuit is similar to that of Fig. 5-36, except that the triangle and square outputs are controlled by a sweep or FM input. The frequency is determined by C, R3, RC, VC, and V- as shown by the equations.
