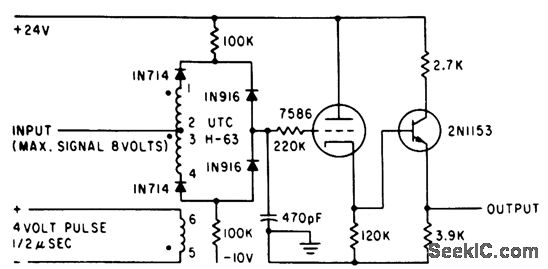

HYBRID_SILICON_BOXCAR

Published:2009/7/23 22:18:00 Author:Jessie | From:SeekIC

Signal-to-noise ratio of silicon hybrid is up to 2 db better than germanium at all temperatures. Only one transistor is needed for high-temperature stability. Input to boxcar should be from 150-ohm source.-A. G. Lloyd, Half-Bridge Inverter Provides Economical Three-Phase Power, Electronics, 34:37, p 62-65.
