HEAVY_DUTY_WELDER_CONTROL

Published:2009/7/24 2:18:00 Author:Jessie | From:SeekIC

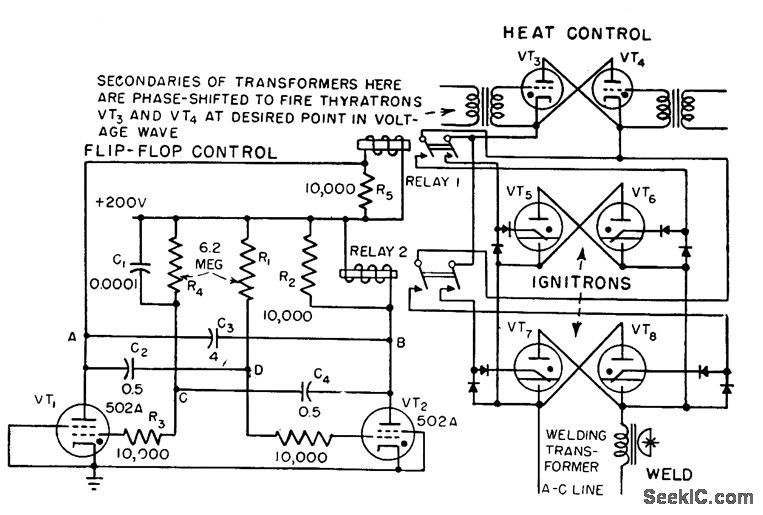

Flip-flop thyratron circuit makes pairs of ignitrons share load alternately, to prevent overloading of tubes when welder is used for heavier weld or for longer lime than originally intended.-J. Markus and V. Zeluff, Handbook of Industrial Electronic Control Circuits, McGraw-Hill, New York, 1956, p 342.
