HEAT_PROGRAM_TIMER

Published:2009/7/24 2:12:00 Author:Jessie | From:SeekIC

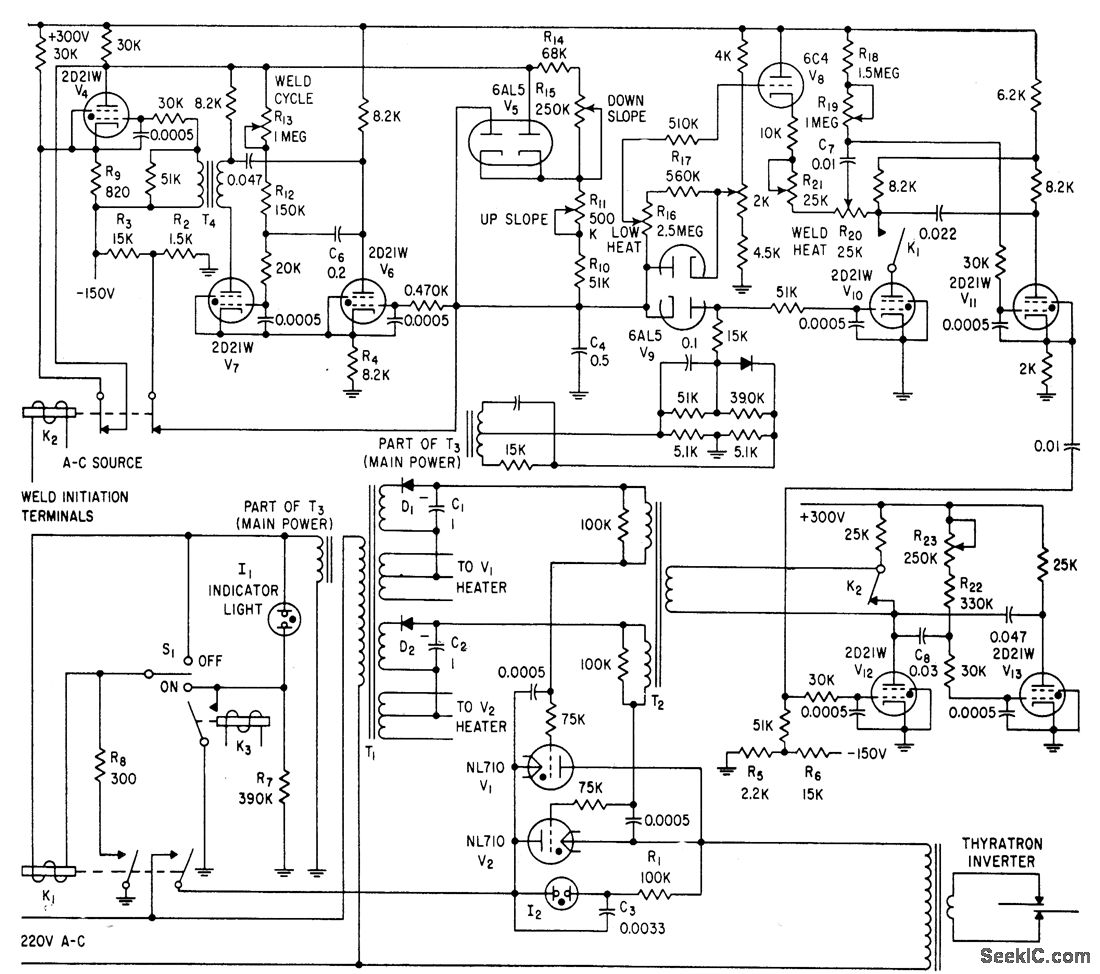

Controls weld energy for production-line welding of electron tubes and other small components. Functions controlled are low heat, weld heat, up-slope time, weld time, and down-slope time. Adjustable potentiometers permit changing each of these times.-A. V. Ronis, Heat Program Timer Controls Weld Energy, Electronics, 31:23, p 76-78.
