Great Wall programmed box fan circuit

Published:2012/11/20 20:34:00 Author:Ecco | Keyword: Great Wall , programmed box fan | From:SeekIC

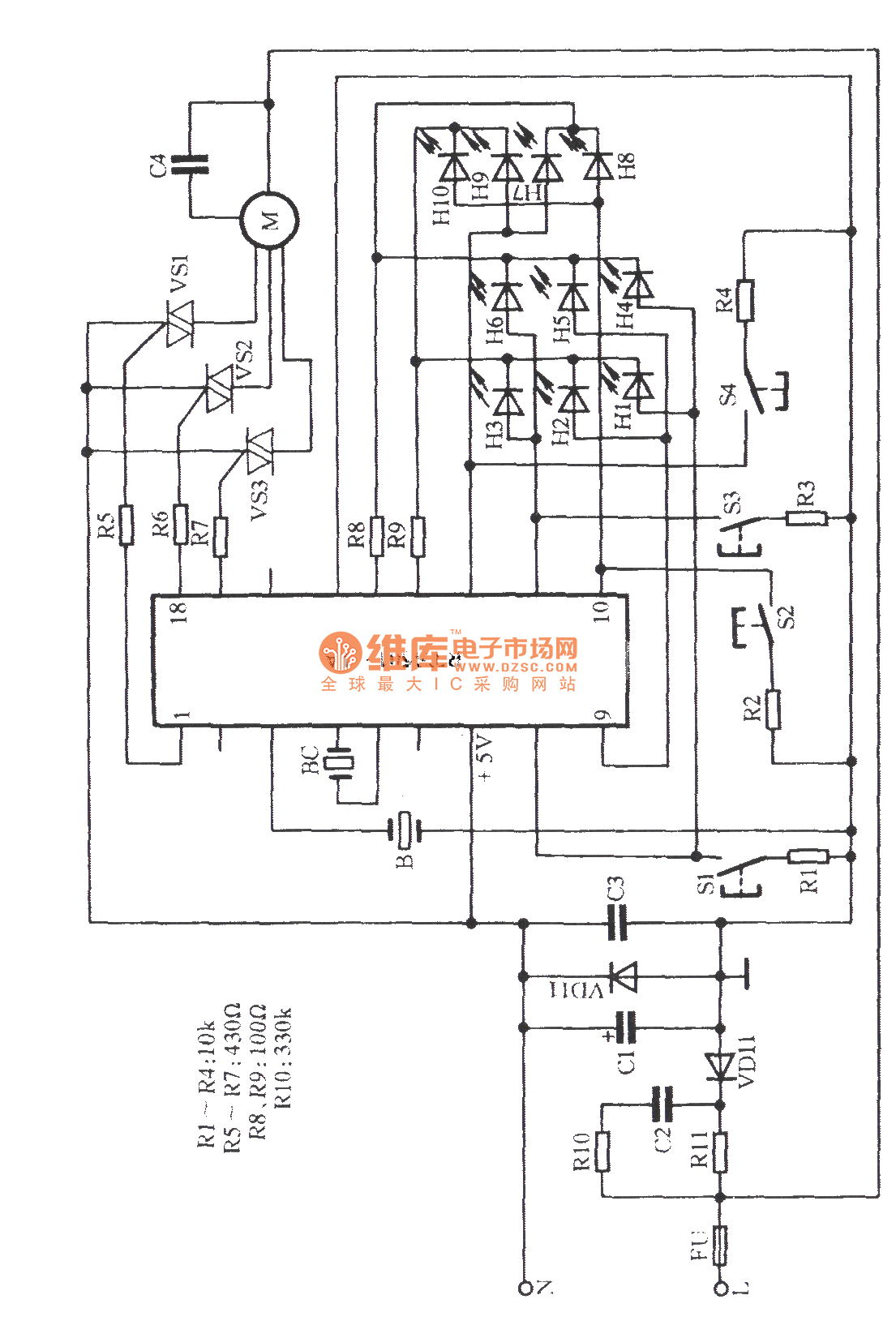

Great Wall FS36-40 fan uses programmable technology, and it has three wind species, three wind speeds and four-time segment timing shutdown function. It also has 10W lights at night, and the circuit is shown as the figure. The circuit uses IC chip RTS-1A with fewer external components and manual operation and automatic operation. H1 ~ H10 are light emitting diodes.
