Full_range_ac_power_control

Published:2009/7/21 21:47:00 Author:Jessie | From:SeekIC

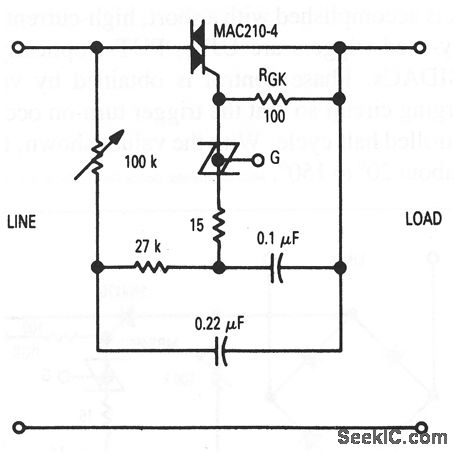

This circuit shows a full-range ac control scheme that uses a triac and SBS. Control is obtained by varying the 100-k Ω pot. Notice thatRGK can be omitted when nonsensitive gates are used. The double time constants of this circuit produce low hysteresis, which thus extends the control range.
