Fast_half_wave_rectifier

Published:2009/7/24 22:54:00 Author:Jessie | From:SeekIC

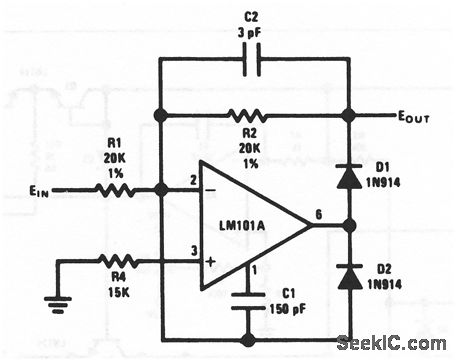

This circuit provides rectification with 1% accuracy from dc to 100 kHz, with a slew rate of 10V/μs. Operation can be extended to full-wave rectification as shown in Fig. 10-40.
