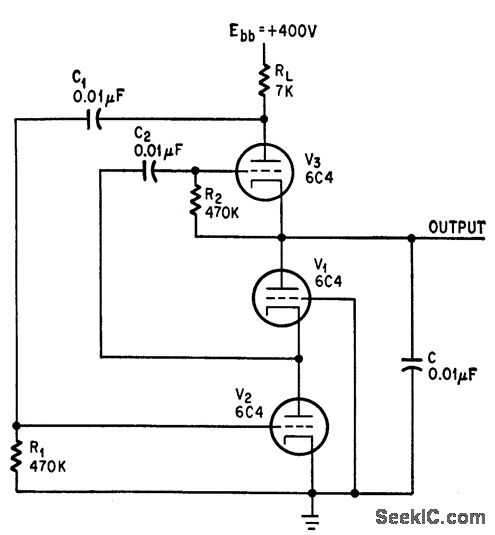

FREE_RUNNING_GROUNDED_GRID

Published:2009/7/24 3:41:00 Author:Jessie | From:SeekIC

Has higher output impedance than other time-base sweep circuits. Reducing RL increases period.-C. Sing, Grounded-Grid Circuit Sweeps Better Than Miller or Bootstrap, Electronics, 38:6, p 83-84.
