FENCING_TOUCH_TIMER

Published:2009/7/23 22:20:00 Author:Jessie | From:SeekIC

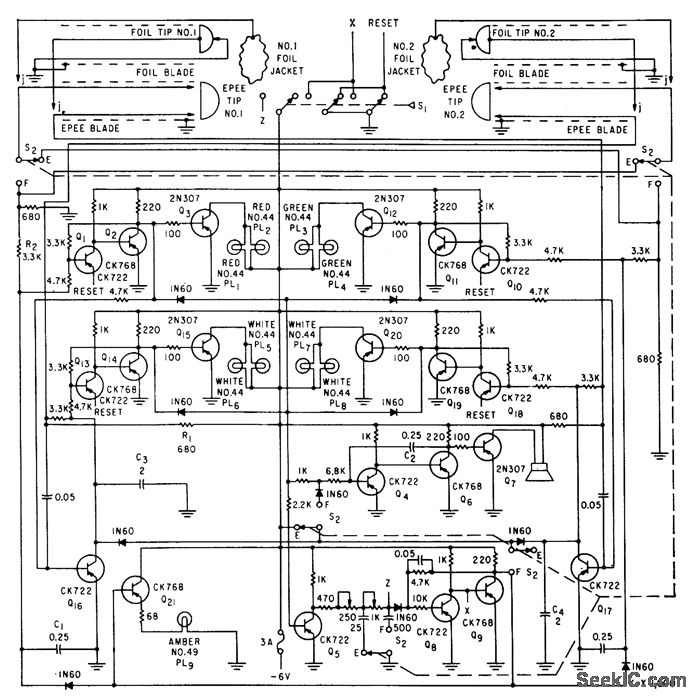

Detects touches in either epee or foil fencing, determines if touch is held long enough to score point, then starts timing interval in which other fencer may also score. Lamps indicate status of match. Loudspeaker sounds tone when sequence of touches is correct, and switch S1 must then be reset for next scoring sequence.-W. R. Durrell, Electronic Judging of Fast-Moving Sports Contests, Electronics, 32:32, p 114-115.
