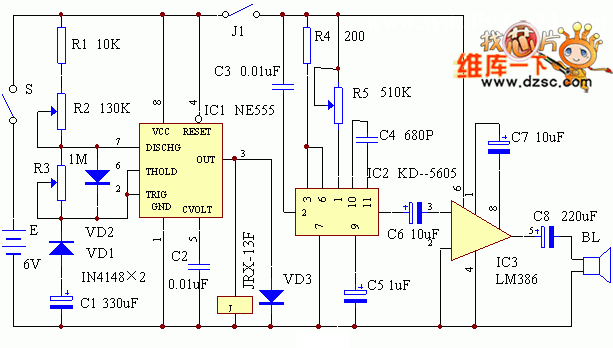

Electronic imitation sound pest quitter circuit diagram

Published:2012/12/17 2:50:00 Author:Ecco | Keyword: Electronic , imitation sound , pest quitter | From:SeekIC

R2 is a 10k Ω fine-tuning resistor; R3 is a 130kΩ fine tuning resistor; R3 is a 200Ω resistor; R5 is a 510k Ω fine-tuning resistor; C1 uses 330u/16V electrolytic capacitor; C2, C3 are 0.01u polyester capacitors; C4 is a 680P porcelain capacitor; C5 uses 1u/16V 1 Electrolytic Capacitor; C6, C7 are 10u/16V Electrolytic Capacitors; VD1 and VD2 are IN4148 switching diodes.
