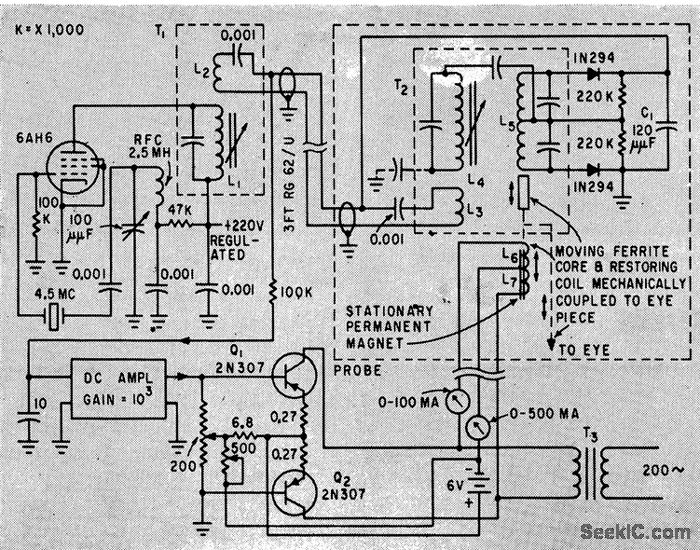

Moving ferrite core in probe deflects in proportion to eyeball pressure and produces signal that is amplified to drive recorder. Plateau of re corded response represents true pressure, which can easily be read independently of peak caused by extra pressure of probe.-R. S. Mackay and E. Marg, Electronic Tono-meter for Glaucoma Diagnosis, Electronics, 33:7, p 115-116.
