ENLARGER_TIMER_STEP_CIRCUIT_0_TO_59_s

Published:2009/7/24 3:06:00 Author:Jessie | From:SeekIC

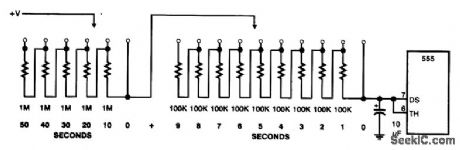

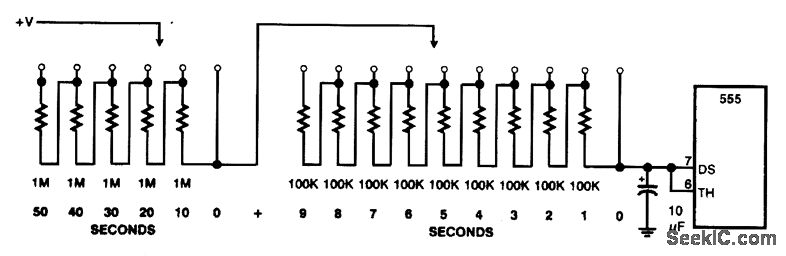

This circuit shows how to set up a NE555 timer to produce timing steps from 0 to 59 s in 1-s intervals.
