EDGE_DETECTOR

Published:2009/6/25 22:31:00 Author:Jessie | From:SeekIC

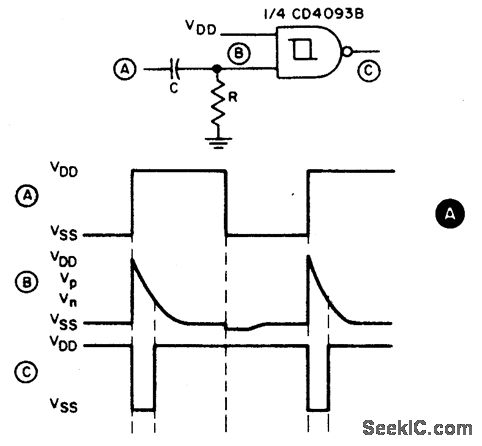

Circuit Notes This circuit provides a short negativegoing output pulse for every positive-going edge at the input. The input waveform is coupled to the input by capacitor C; the pulse O length denends, as before, on R and C. If a negattve gomg edge detector is required, the circuit in B should be used.
