ECL_to_TTL_translator_extended_range

Published:2009/7/24 9:29:00 Author:Jessie | From:SeekIC

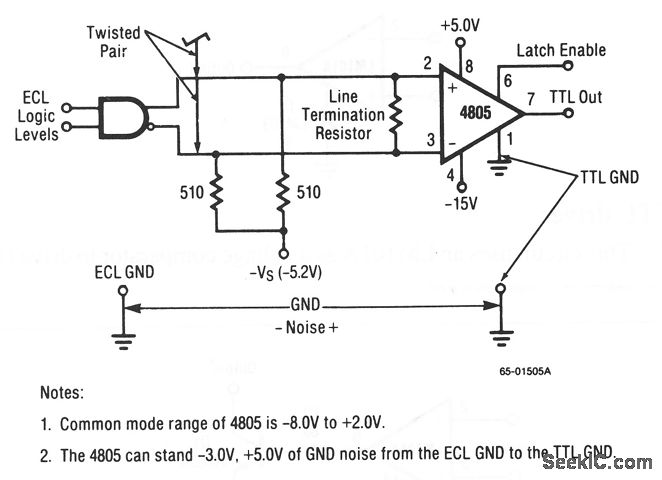

This circuit uses an RC4508 comparator as an ECL-to-TTL translator with extended common-mode range. Raytheon Linear Integrated Circuits, 1989, p. 5-13.
