DUO_DIODE_HALF_WAVE_SWITCH_MODULA_TOR

Published:2009/7/22 1:14:00 Author:Jessie | From:SeekIC

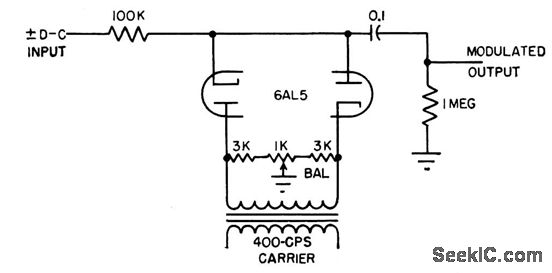

Tube serves in place of chopper. Carrier voltage turns diodes on and off, transferring d-c input signal to output when diodes are not conducting. With 10-v rms carrier voltage, output is linear up to 2 v for inputs up to 5 v d-c.-L. S. Klivans, Modulators for Automatic Control Systems, Electronics, 31:1, p 82-84.
