DOOR_MINDER

Published:2009/6/14 21:45:00 Author:Celina | From:SeekIC

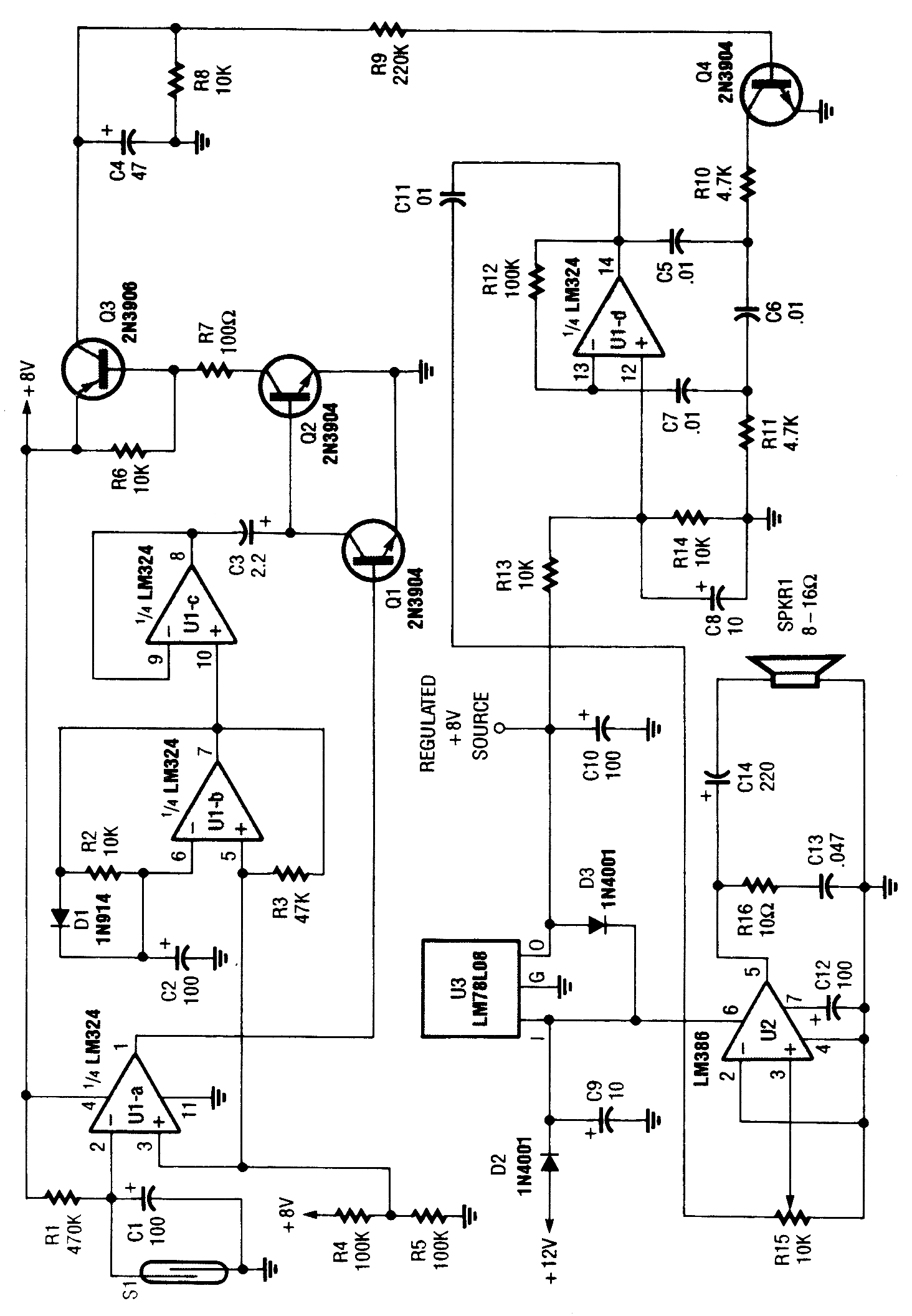

This circuit monitors a door to detmrmine if it has been left open.After 24 seconds, the alarm sounds.S1 is a magnetic sensor. The alarm is an electronic chime sound that is struck once per second.
