DIGITAL_DATA_READ_AMPLIFIER

Published:2009/7/24 4:53:00 Author:Jessie | From:SeekIC

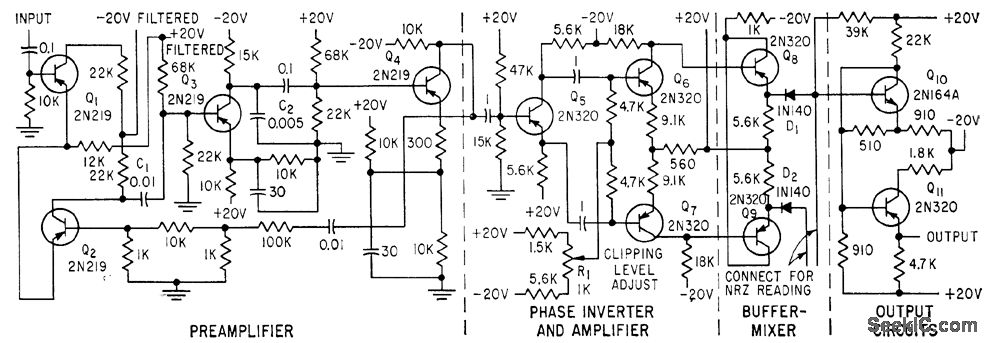

Presents 10,000-ohm input impedance to read head. No-signal input produces -4 V output; peak input as low as 1.35 my zero-to-peak produces +4 v output. Gives satisfactory reading at pulse repetition rates up to 22 kc.-R. F. Shaw, Universal Tope Amplifiers for Digital Data Systems, Electronics, 31:41, p 91-93.
