DEMODULATOR_WITH_CARRIER_DETECT

Published:2009/7/3 1:56:00 Author:May | From:SeekIC

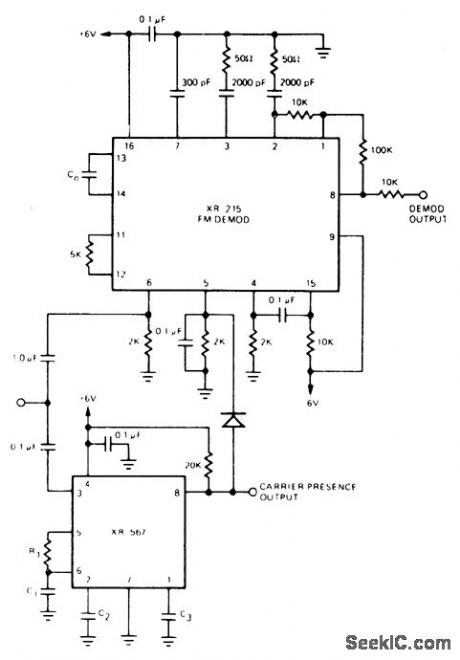

Exar XR-567 PLL system is used with XR-215 FM demodulator to detect presence of carrier signal in narrow-band FM demodulation applications where bandwidth is Iessthan 10％ of carrierfrequency. Output of XR-567 is used to turn off FM demodulator when no carrier is present, giving squelch action. Circuit will detect presence of carrier up to 500 kHz.- Phase-Locked Loop Data Book, Exar Integrated Systems, Sunnyvale, CA, 1978, p 41-48.
