Commutator_network_using_N_channel_MOSFETs

Published:2009/7/21 3:11:00 Author:Jessie | From:SeekIC

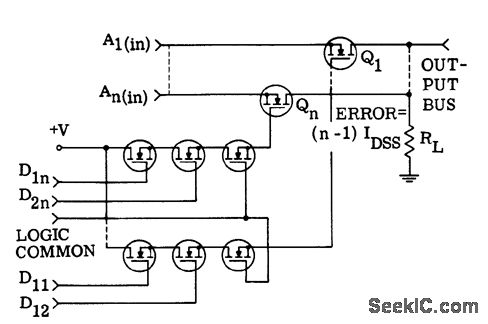

Commutator network using N-channel MOSFETs. All semiconductors are 2N4351s. Each switch has a three-input AND gate in series with the gate drive (courtesy Motorola Semiconductor Products Inc.).
