Combined_one_shot_and_comparator

Published:2009/7/24 9:12:00 Author:Jessie | From:SeekIC

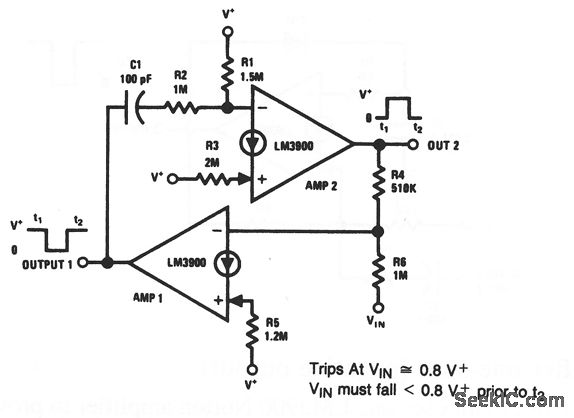

This circuit uses two LM3900 Norton amplifiers to provide a one-shot output pulse only when the input exceeds a given value (0.8 V in this case). National Semiconductor, Linear Applications Handbook, 1991, p. 242.
