Capacitor_discharge_SCR_ignition_system

Published:2009/7/21 1:59:00 Author:Jessie | From:SeekIC

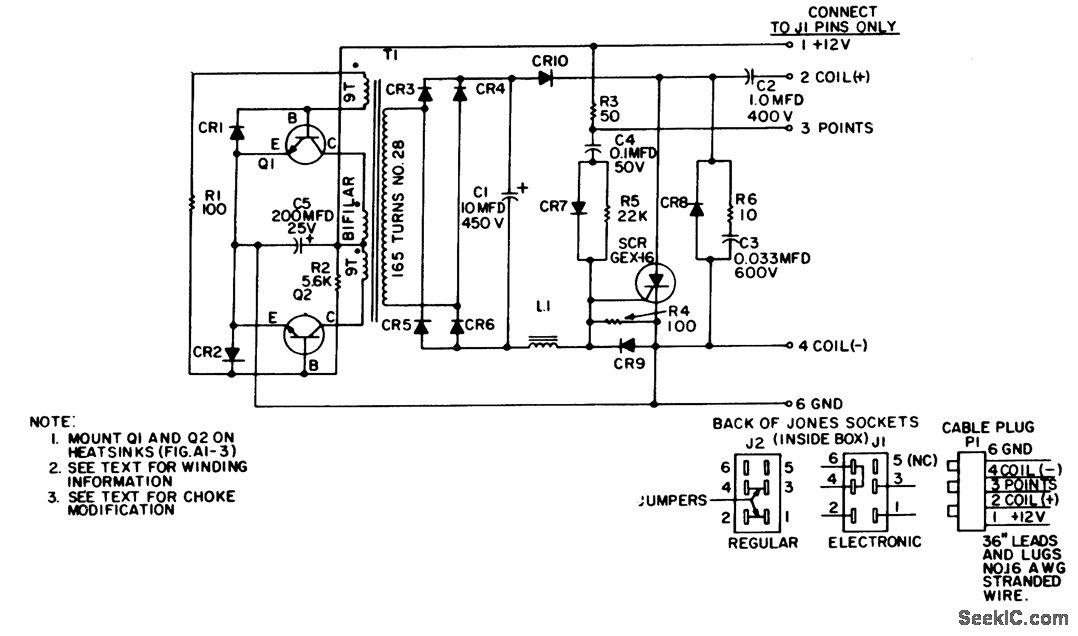

Capacitor discharge SCR ignition system. The circuit draws less than 1 ampere at high RPM (courtesy General Electric Company).
