CRYOGENIC_CONTACT_TESTER

Published:2009/7/23 21:50:00 Author:Jessie | From:SeekIC

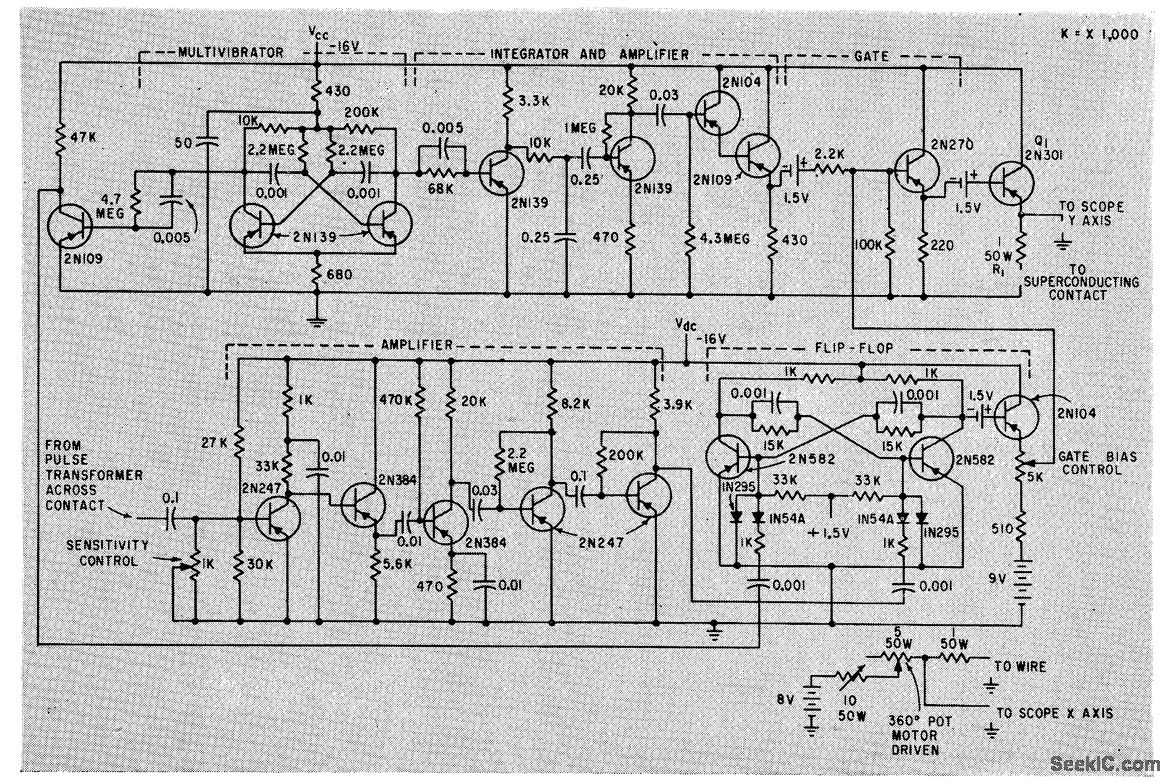

Measures critical current in superconducting contacts during periods shorter than 100 microsec in which such currents can be maintained, and gives oscilloscope display.-J. I. Pankove and R. Drake, Measuring Critical Current in Cryogenic Circuits, Electronics, 33:4, p 52-53.
