COMPLETE_3_W_400_CPS_SERVO_AMPLIFIER

Published:2009/7/24 1:28:00 Author:Jessie | From:SeekIC

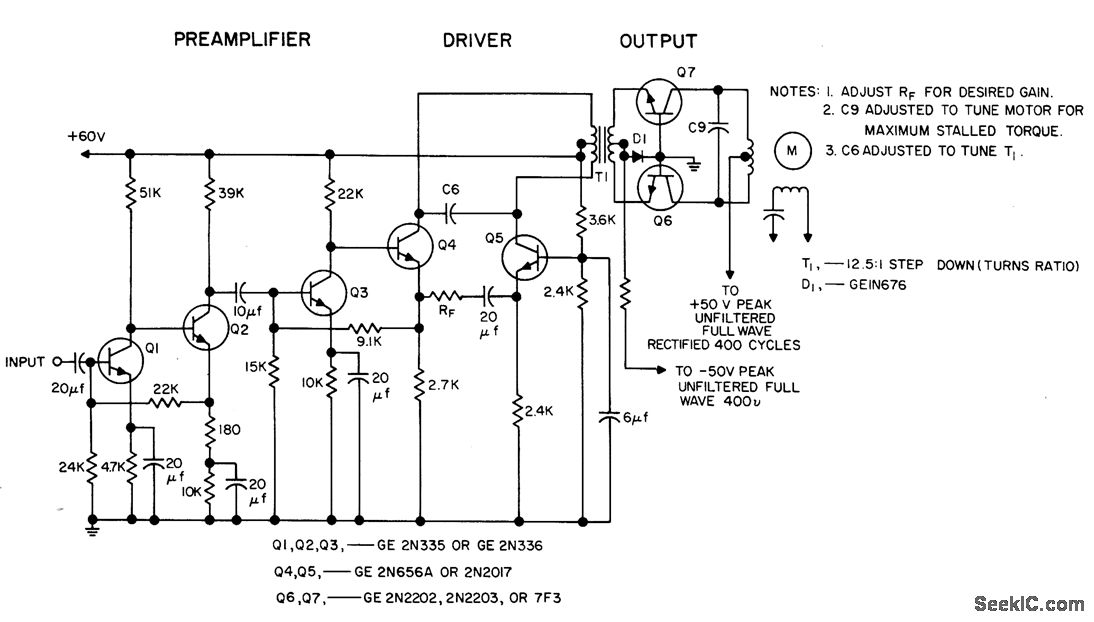

Is capable of driving 3.w servo motor in ambient of -55 to 125℃, if capacitors for 125℃ are used. Gain can be adjusted over range of 20,000 to 80,000 amp per amp by adjusting RF in driver circuit. Gain varies less thon 10% over operating temperature range.- Transistor Manual, Seventh Edition, General Electric Co., 1964, p 225.
