COMMON_PLATE_TRIODE_MIXER

Published:2009/7/23 23:34:00 Author:Jessie | From:SeekIC

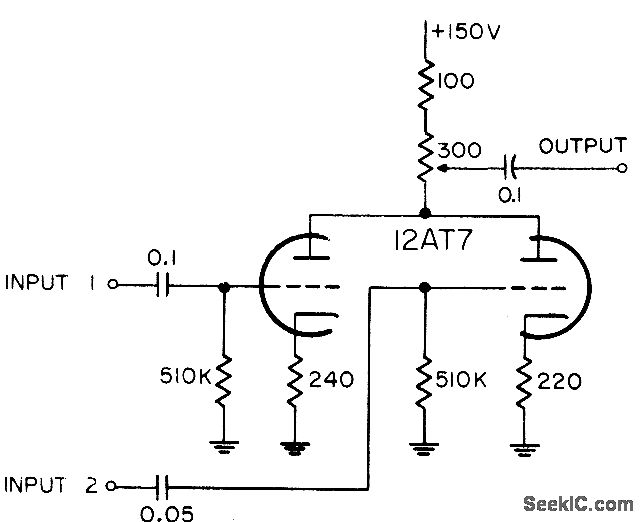

Has two inputs, for combining mixed markers and radar video. Cathode resistors are unby-passed, for gain stabilization.-NBS, Handbook Preferred Circuits Navy Aeronautical Electronic Equipment, Vol. 1, Electron Tube Circuits, 1963, p N4-3.
