COMBINED_NEGATIVE_POSITIVE_FEEDBACK

Published:2009/7/23 23:39:00 Author:Jessie | From:SeekIC

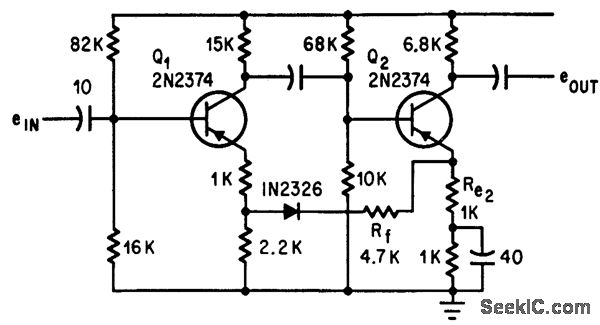

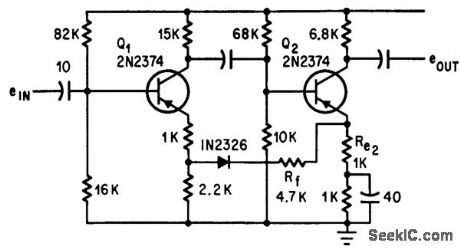

Two-stage common-emitter amplifier permits use of positive feedback to Rf along with negative feedback, to give stability factor of 5 and overall gain of 47 db with input impedance of 10,000 ohms for small-pulse amp lification in servo system.-N. A. Wade, Combined Feedback Stabilizes Amplifier, Electronics, 37:15, p 76.
