COLOR_VIDEO_I_F

Published:2009/7/20 22:21:00 Author:Jessie | From:SeekIC

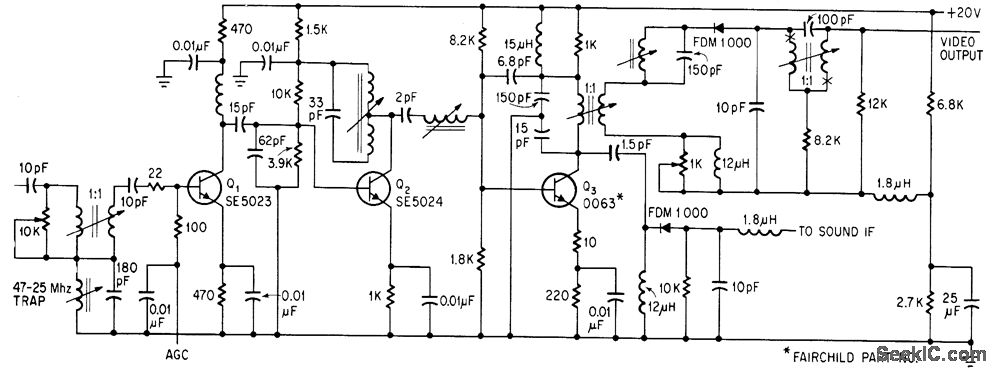

Three-stage amplifier has forward agc on first stage Q1. Sound trap at 41.25 Mc before detection prevents 900-Mc beat between color subcarrier and sound carrier. -D. Bray, Solid State Makes Debut in Big-Screen Color Tv, Electronics, 39:8, p 99- 105.
