COLOR_HOLD

Published:2009/7/20 22:18:00 Author:Jessie | From:SeekIC

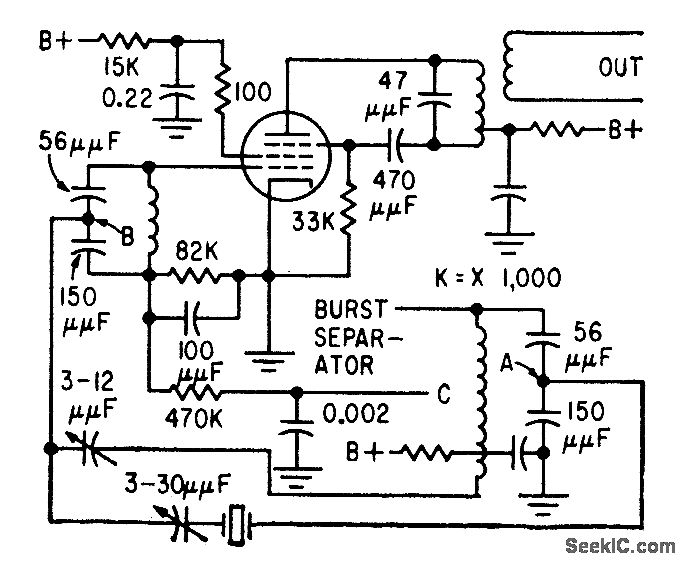

Uses passive fiber to separate color subcarrier frequency front sync burst, along with injection-locked oscillator that combines amplitude limiting and power amplification for direct drive of color demodulators.-I. N. Moth, Locked Oscillator for Color Tv, Electronics, 32:39, p 91-92.
