COLOR_AGC

Published:2009/7/20 22:17:00 Author:Jessie | From:SeekIC

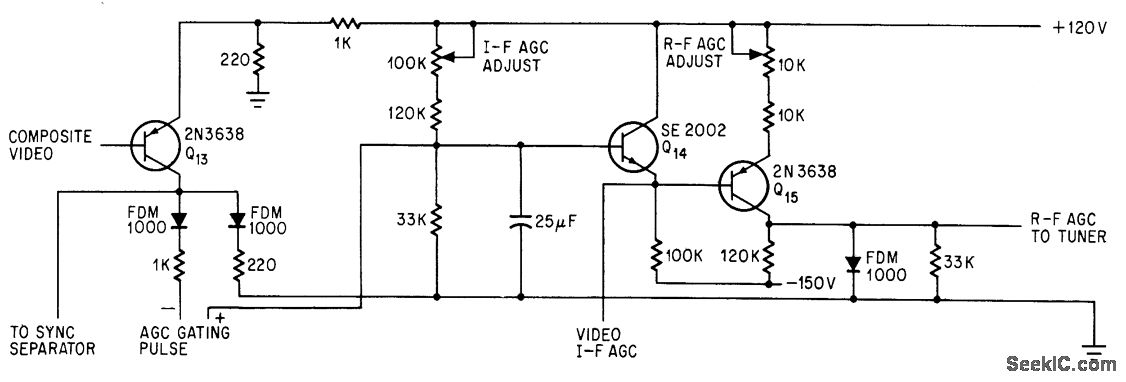

Supplies bias voltage to r-f and video i-f stages of color set using transistors in all but deflection and recliner stages, to maintain video output amplitude at about 3 v.-D. Bray, Solid State Makes Debut in Big-Screen Color Tv, Electronics, 39:8, p 99-105
