COLD_CATHODE_SAMPLING_COUNTER

Published:2009/7/23 22:06:00 Author:Jessie | From:SeekIC

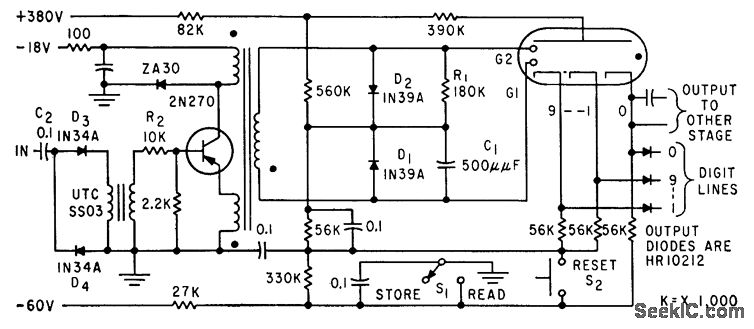

Transistor-blocking oscillator drives cold-cathode counter tube to give long-life decade counter having low power consumption. Used in automatic recorder for data from several hundred radioactive samples per day. Maximum repetition rate is 200 pps.-H. Sadowski and M. E. Cassidy, How Transistor Drives Cold-Cathode Counter, Electronics, 32:38, p 46-47.
