CMOS_staircase_generator

Published:2009/7/25 3:40:00 Author:Jessie | From:SeekIC

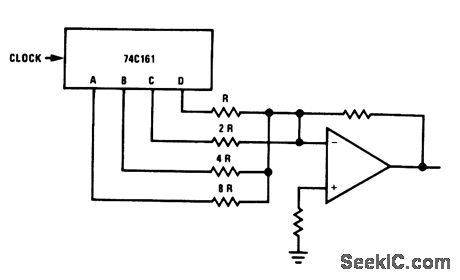

This circuit uses a 74C161 and any suitable op amp (such as an LM301) to form a staircase generator. Linearity of the staircase depends on precision of the resistors.
