CMOS_RE_video_multiplexer

Published:2009/7/23 22:13:00 Author:Jessie | From:SeekIC

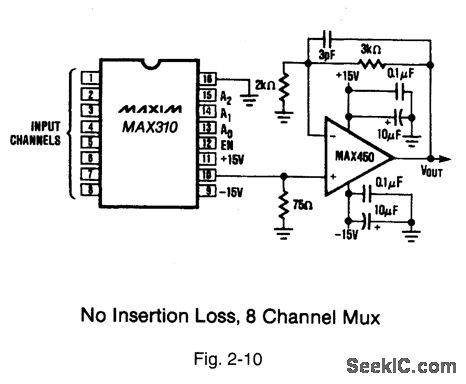

Figure 2-10 shows a typical application circuit and pin configurations for the MAX310/11. The key feature of the IC is extremely high off-isolation at high frequencies. The isolation of each off channel to the output is guaranteed to be -66 dB at 5 MHz. The input signal range is +12 V to -15 V with t15-V supplies.Power consumption is typically 1.1mW. All control inputs are fully compatible with TTL and CMOS. Decoding is in standard BCD. An enable input is provided to simplify cascading of the ICs. The ICs will operate with power supply combinations that total less than 36 V (V+ - V-), including single-supply operation at +12 V, +15-V, and +28 V with V- connected to ground. MAXIM HIGH-RELIABILITY DATA Book, 1993, P. 1-1.
