CAMERA_CONTROL

Published:2009/7/21 4:33:00 Author:Jessie | From:SeekIC

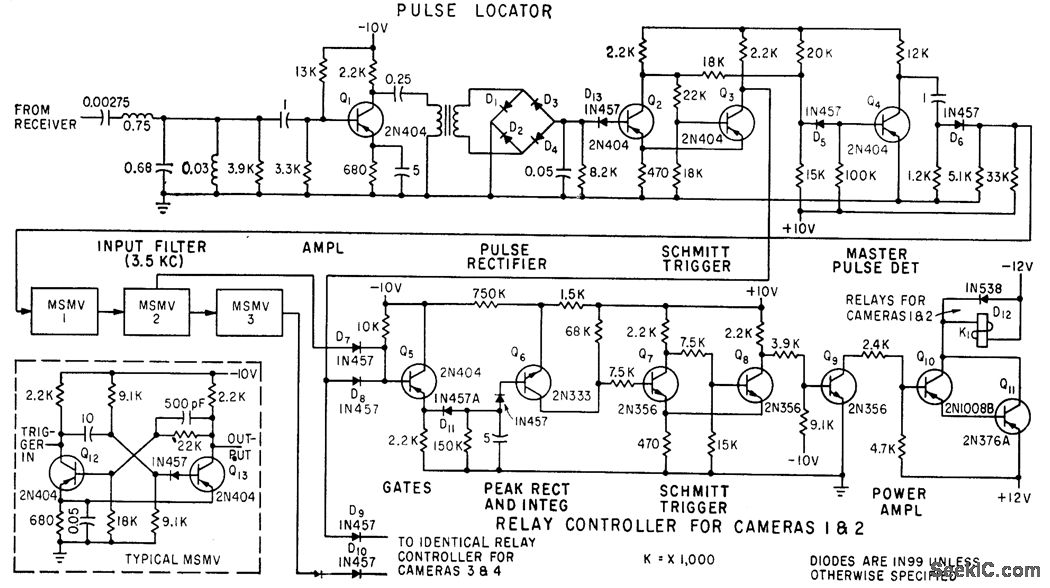

Circuit separates 3.5-kc pulses from other subcarrier signals at input filter, then amplifies, rectifies pulses, and squares pulses at Schmitt trigger. Four cameras can be controlled by system from single 460-Mc radio link.-F. M. Gardner and L. R. Hawn, Camera Control System for Rocket Sled Tests, Electronics, 33:14, p 63-65.
