Break_before_make_delay

Published:2009/7/23 21:58:00 Author:Jessie | From:SeekIC

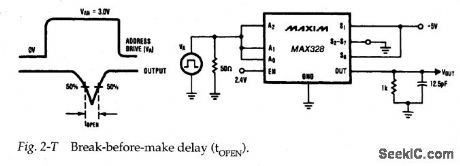

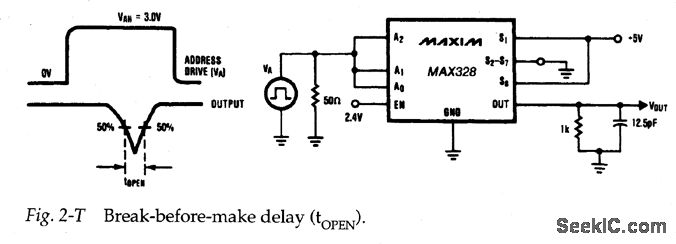

Figure 2-T shows a test circuit for measuring break-before-make delay for the MAX328/29, Again, a pulse is required at the analog inputs. Typical break-before-make delay is 0.2 μps.
