Basic_triac_control_circuit_that_uses_an_SBS

Published:2009/7/21 23:04:00 Author:Jessie | From:SeekIC

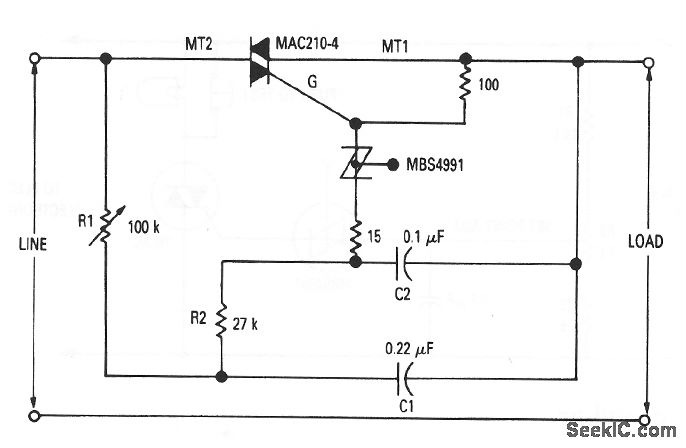

This figure shows the basic control circuit for triacs that use SBS triggers. The line voltage and load current depend primarily on the triac characteristics. In this case, the MAC210-4 accommodates loads up to 10 A.
